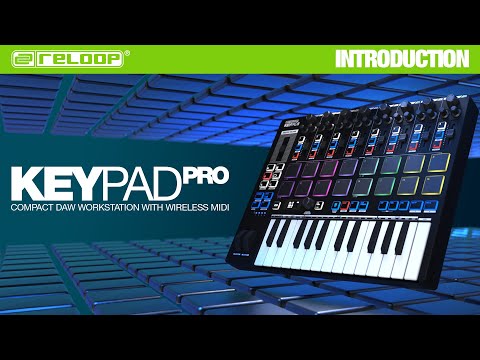

Reloop Keypad Pro is a Compact all-in-one DAW Controller for Producers.

Top Features:
– Compact USB-MIDI DAW workstation with full Bitwig integration
– 4-in-1 Station: master keyboard, drum pads, mixer unit & DAW controls
– USB bus-powered or battery-operated with Wireless MIDI & USB hub

The Reloop Keypad Pro raises the bar for mobile music production. The clever combination of a mini master keyboard, drum pads, a mixer unit, and digital audio workstation (DAW) controls provides an ideal all-in-one solution for project studios and mobile use.

Produce anytime, anywhere!
The compact DAW workstation is capable of running on either USB power or batteries, making it a perfect solution for mobile studios or live projects. Furthermore, the Reloop Keypad Pro also supports both wired (via USB) and wireless (via Bluetooth) connections to host computers and smart devices (via wireless MIDI).

Create harmonic compositions at the touch of a button
The built-in keyboard features 25 velocity-sensitive keys across nine playable octaves, so even the most complex musical ideas can be brought to life. Reloop Keypad Pro also accommodates the needs of professional keyboard players thanks to its integrated pitch bend and modulation wheels. Other innovative features include an arpeggiator with a wide variety of patterns, a sustain, velocity quick selection for the keys, a chord function to simplify the playing of common chords, and a clever scale mode in which the right note is always played across four different modes, ensuring limitless creative compositions.

On the beat!
Sixteen velocity-sensitive drum pads provide maximum creative flexibility when composing beats, and can also be used for control or program change commands to activate specific effects or plugins. Impressive recording is further enhanced by aftertouch and RGB backlighting. The drum pad section can also be used to launch clips (play and stop) in a project session.

DAW master controls
The DAW master section on the Reloop Keypad Pro features important controls including dedicated buttons for transport control and the key recording functions (Play, Stop, Rec, Loop, Zoom, Automate, Metronome, Scene, Tap, Master Volume, Navigation encoder, Reset, CC/PC Mode, Perform Mode).

Record, mix and master
Eight full channel strips can be found in the sophisticated control section, together with dedicated line faders, an endless encoder (pan), two potentiometers (send/return), and three illuminated function buttons (Channel, Solo, Rec). With the Keypad Pro, you can conveniently control and monitor every aspect of the recording, mixing, and mastering processes without ever touching a mouse.

Versatile performance with OLED display
Reloop Keypad Pro is an intuitive and flexible creative hub with four selectable performance scenes with LED indication, an OLED display for the real-time reference of parameters and settings, and a shift button for activating secondary functions.

Modern music production: Plug & play with Bitwig Studio
Reloop Keypad Pro is fully integrated into Bitwig Studio and works with the popular DAW via plug-and-play. Bitwig’s lightning-fast workflow, with its large library of plugins and sounds, allow you to start producing immediately. The DAW workstation is also MIDI-compatible with all popular DAWs.

Practical connections to expand the setup
The producing workstation has a 6.3 mm jack connection for an external sustain pedal and a 3.5mm jack connection for MIDI out. Additional recording peripherals can be connected via the integrated passive USB hub (2x USB-A).

Comprehensive software package included
Includes a comprehensive software package of plugins and samples: Bitwig Studio 8-Track DAW recording software, Loopcloud Studio with 4 million royalty-free samples in all popular genres (access for two months), Excite Audio Lifeline Expanse Lite multi-effects plugin, Melodics (40 free lessons) and a three-months free Serato Studio license.

Features:
– Compact USB-MIDI DAW workstation
– Combination of mini master keyboard, drum pads, a mixer unit, and DAW controls
– All the essential music production tools at your fingertips in one single device
– Wireless Bluetooth connection (via wireless MIDI) for mobile music production on smart devices
– Plug-and-play: Full integration with Bitwig Studio
– Keyboard with 25 mini keys across nine playable octaves
– Drum pad section: Sixteen velocity-sensitive drum pads with aftertouch and RGB lighting
– Control section: Eight channel strips with line faders, endless encoder (pan), two potentiometers (send/return), and three illuminated function buttons (Channel, Solo, Rec)
– DAW master section: Dedicated buttons for transport control and the key recording functions (Play, Stop, Rec, Loop, Zoom, Automate, Metronome, Scene, Tap, etc.)
– Four selectable performance scenes with LED indication
– Master volume fader, pitch bend, and modulation wheels
– Shift button to control secondary layer functions
– OLED display for the real-time reference of parameters and settings
– Navigation encoder for browsing scenes and settings
– Perform mode button: Quick access to tweak a channel device with 8 encoders
– Bluetooth pairing button
– Quick reset button
– CC/PC MIDI mode button
– Clip Launch mode button to toggle the drum pad section
– Integrated arpeggiator with multiple patterns
– Octave up/down, Sustain and Velocity buttons
– Chord function: Makes it simple to play common chords
– Scale mode: Hit the right note every time in four different scale modes
– MIDI-compatible with all popular DAWs
– USB bus-powered or battery-operated
– 6.3mm jack connection for an external sustain pedal
– 3.5mm jack connection for MIDI out
– Integrated passive USB hub (2x USB-A) to connect additional recording peripherals
– Kensington lock connection
– Includes a comprehensive software package of plugins and samples: Bitwig Studio 8-Track DAW recording software, Loopcloud Studio (two-month access), Excite Audio Lifeline Expanse Lite multi-effects plugin, Melodics (40 free lessons) and a three-month free Serato Studio license
– Incl. USB-B to C cable, USB-B to A cable, 3.5mm audio to MIDI cable adapter and instruction manual

Technical Data:
– Weight: 1.723 kgs
– Dimensions (W x D x H): 375 x 285 x 35 mm
– Note keys: 25 (velocity sensitive)
– Pads: 16 (velocity sensitive & after touch control)
– Dials: 97
– Inputs/Outputs: 1x USB-B, 2x USB-A (Hub), 1x 6.3 mm Jack (Sustain Pedal), 1x 3.5 mm Jack (MIDI Out), Bluetooth (wireless MIDI)
– Power Supply: DC IN 5V / 250 mA
– Battery: 3x AA (LR6 / 1.5V)
– Minimum system requirements: For system requirements of your DAW software, please refer to the software manufacturer’s specifications.
– Incl. 1x USB-B to USB-C cable, 1x USB-B to USB-A cable, 1x 3.5mm jack to MIDI (DIN) adapter cable and instruction manual
